Complete PUR Lamination Process – From Automatic Gantry Loading to Unloading

Looking for a more automated way to laminate MDF, HDF and decorative panels? A complete PUR lamination process can connect feeding, surface cleaning, pre-heating, adhesive application, film pressing and unloading into one continuous production workflow.

For manufacturers still relying heavily on manual panel handling, the problem is not simply labor cost. Repeated manual loading and unloading can also create inconsistent feeding positions, production interruptions and unnecessary handling damage. A well-designed automatic line can make the entire process more stable and easier to manage.

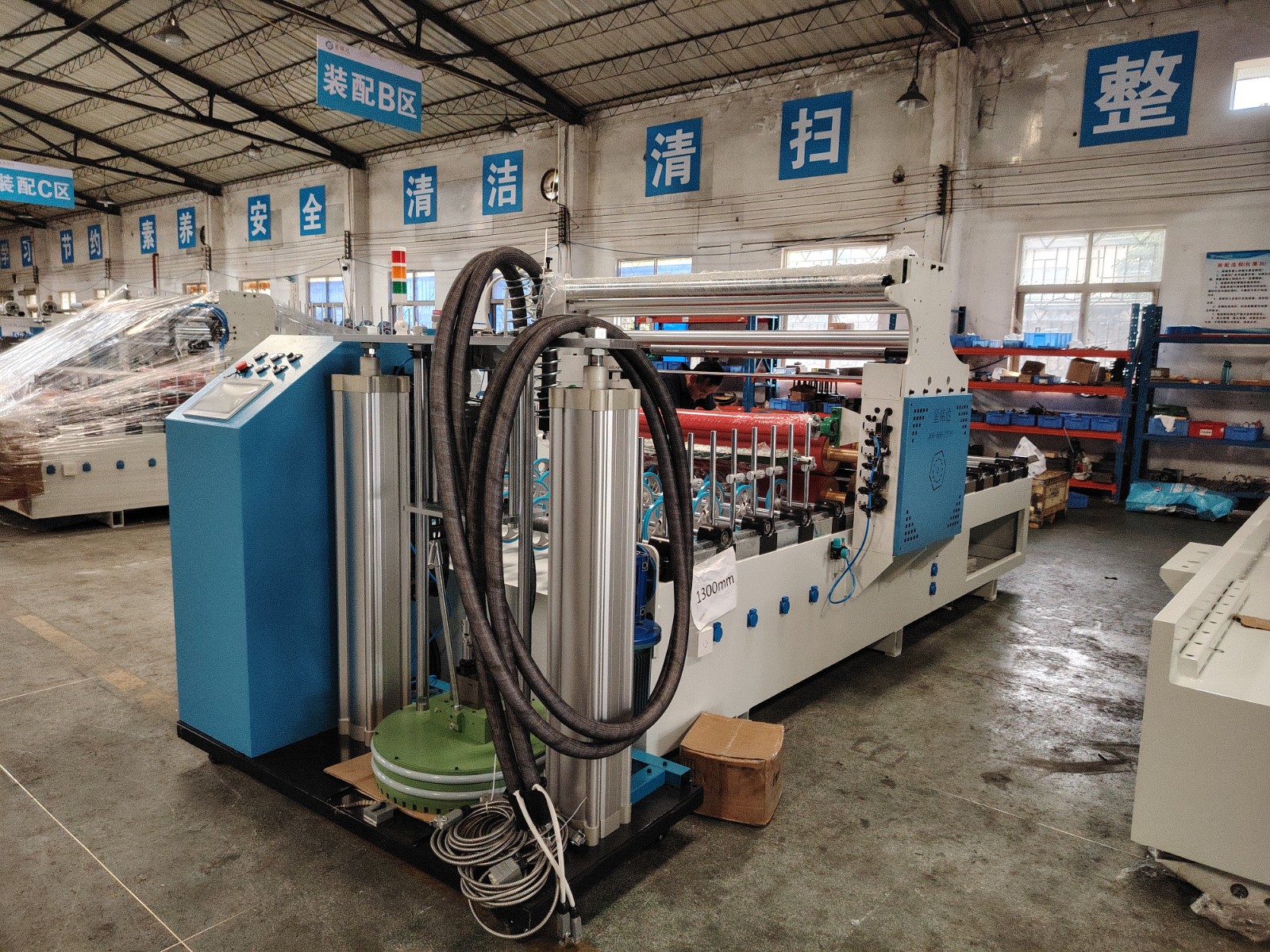

Today, Xingmingda automatic Woodworking machinery Co.,Ltd introduces a complete PUR Lamination Machine process featuring automatic gantry loading and unloading. From the moment a board enters the line to the moment the finished laminated panel leaves the equipment, each stage is connected into a coordinated production sequence.

1. Product Definition: What Is a Complete PUR Lamination Process?

A PUR lamination line is designed to bond decorative film or other surface materials to boards using reactive polyurethane hot melt adhesive.

Unlike a single laminating machine that performs only one processing stage, a complete production line integrates several important functions:

Automatic gantry loading → Conveying → Dust cleaning → Air blowing → Pre-heating → PUR adhesive application → Film lamination → Pressing → Automatic unloading

This integrated structure is particularly valuable for factories seeking a more continuous production workflow.

In the Xingmingda solution, the automatic gantry loading system first picks and feeds the boards into the conveying section. The panel then moves through the cleaning system before entering the heating oven.

After the board reaches the required processing condition, the gluing machine applies PUR adhesive to the panel surface. The laminating section then presses the film firmly onto the adhesive-coated board.

Finally, the automatic gantry unloading system removes the finished panel from the production line.

The result is a connected process with fewer manual handling points.

2. How Does the Complete PUR Lamination Process Work?

Step 1: Automatic Gantry Loading

The production process begins with automatic gantry loading.

Instead of requiring an operator to manually place every panel onto the conveyor, the gantry system handles the initial feeding process.

This can help manufacturers improve:

• Feeding consistency

• Production continuity

• Operator efficiency

• Workplace organization

For high-volume panel production, reducing repetitive manual handling can make a noticeable difference to the overall workflow.

Step 2: Conveyor Feeding and Surface Cleaning

After loading, the panel enters the conveyor system.

Before adhesive application, surface cleanliness is critical.

Wood panels can carry dust and small particles from previous processes such as:

• Cutting

• Sanding

• Edge processing

• Drilling

If this dust remains on the bonding surface, it may interfere with adhesive contact and contribute to surface defects.

The Xingmingda line therefore incorporates a cleaning process using a brush and air blowing device.

The brush helps remove particles from the board surface, while the air blowing system further clears away loose dust.

This simple step has an important purpose:

A cleaner surface provides a better starting point for consistent PUR adhesive application.

3. Pre-Heating: Preparing the Panel Before PUR Adhesive Application

After surface cleaning, the panel enters the heating oven.

Why is pre-heating important?

PUR adhesive performance is affected by processing conditions. If the panel surface is too cold, adhesive spreading and bonding behavior may become less stable.

The heating stage helps bring the panel to a more suitable processing condition before it reaches the gluing machine.

For manufacturers working in regions with seasonal temperature differences, controlling the pre-heating stage can be especially useful for maintaining consistent production.

The exact heating temperature and residence time should be determined according to:

• Board material

• Board thickness

• Film type

• PUR adhesive specification

• Factory environment

This is one reason why Xingmingda recommends discussing actual production materials and process requirements before selecting machine parameters.

4. PUR Adhesive Application: The Core of the Lamination Process

Once the panel has completed pre-heating, it moves into the gluing machine.

Here, PUR adhesive is evenly applied to the panel surface.

Adhesive application is one of the most important stages in the entire production line.

Too little adhesive may result in weak bonding or edge peeling.

Too much adhesive may increase material consumption and potentially create adhesive overflow.

Therefore, the objective is not simply to apply more glue. The objective is to achieve a stable and appropriate adhesive coating for the selected material combination.

The Xingmingda PUR lamination solution is designed to integrate adhesive application with the following film-lamination process, helping manufacturers establish a more controlled production workflow.

5. Film Lamination and Pressing

After PUR adhesive has been applied, the board enters the laminating section.

The decorative film is positioned onto the adhesive-coated surface and pressed firmly against the board.

This stage determines the final surface appearance.

A properly coordinated laminating process helps reduce common defects such as:

• Air bubbles

• Wrinkles

• Poor film positioning

• Incomplete bonding

• Edge lifting

The exact pressure, conveying speed and adhesive parameters should be adjusted according to the board and film combination.

For example, MDF, HDF, PVC decorative panels and other substrates may have different surface characteristics and processing requirements.

6. Automatic Gantry Unloading: Completing the Production Cycle

After lamination is completed, the finished panel reaches the automatic unloading section.

The gantry unloading machine transfers the finished panel from the production line without requiring continuous manual handling.

This creates a complete automated workflow:

Loading → Cleaning → Heating → Gluing → Lamination → Unloading

For factories looking to reduce repetitive manual operations, automatic unloading is more than a convenience. It allows the production line to maintain a more organized and continuous material flow.

7. Typical Application Scenarios

The complete PUR lamination process can be applied to various panel surface decoration applications.

Furniture Panel Production

Furniture manufacturers can use PUR lamination equipment for decorative surfaces on:

• Cabinet panels

• Wardrobe panels

• Furniture boards

• Decorative components

Whole-House Customization

Customization factories often handle multiple panel specifications and decorative finishes.

An integrated line can help organize the material flow from feeding through finished-panel unloading.

Wall Panel Production

Decorative wall panels require stable film adhesion and attractive surface quality.

PUR lamination technology can be used for various decorative panel applications depending on the selected substrate and film.

Building Material Manufacturing

For manufacturers producing decorative building materials, automated panel handling can reduce repetitive labor while supporting continuous production.

8. Technical Parameter Reference

Because every customer's panel and film combination is different, a professional PUR lamination line should be configured according to the actual production requirements rather than using a one-size-fits-all specification.

Before ordering, buyers should provide their actual board dimensions, thickness, material, film type and target production requirements.

This information allows the machine configuration to be matched more accurately to the application.

9. What Should Buyers Ask Before Purchasing a PUR Lamination Line?

Purchasing a complete lamination line is a long-term investment. Price should not be the only evaluation factor.

1. Can the line handle my board materials?

Confirm compatibility with MDF, HDF, PVC boards, decorative panels or other substrates.

2. What film materials can be processed?

Different films can have different adhesion requirements. Discuss the actual film specification with the machine manufacturer.

3. How is the adhesive applied?

Ask about the glue application method, coating stability and adjustment range.

4. How much manual labor is still required?

A complete automatic loading and unloading system can reduce repetitive panel handling.

5. Can the machine be customized?

If your production requires special board dimensions, heating conditions, conveyor heights or handling methods, customization may be necessary.

10. Why Choose Xingmingda?

Xingmingda automatic Woodworking machinery Co.,Ltd is a professional manufacturer specializing in woodworking and panel surface processing equipment.

The company focuses on the development and production of:

• PUR lamination machines

• Wrapping machines

• Hot melt coating machines

• Cold glue wrapping machines

• Slotting machines

• Customized panel processing equipment

Rather than treating every project as a standard machine order, Xingmingda focuses on understanding the customer's production process first.

The engineering team considers factors such as:

Board → Adhesive → Film → Heating → Lamination → Handling → Finished Product

This process-oriented approach helps customers choose equipment based on actual production requirements.

For international buyers, this is particularly important. A machine may look attractive on paper, but the real question is whether it can run reliably with your materials and production workflow.

11. From Individual Machine to Complete Production Solution

The biggest advantage of a complete PUR lamination line is not simply automation.

It is process integration.

Instead of having workers manually move panels between separate machines, the complete line connects multiple stages into one workflow.

This can help manufacturers achieve:

• More consistent material feeding

• Cleaner bonding surfaces

• More controlled pre-heating

• Stable adhesive application

• Consistent film pressing

• Reduced repetitive handling

• More organized production

For factories planning to increase production capacity or upgrade from semi-automatic processing to automated production, this integrated approach can be an important step.

12. Turn Your Panel Lamination Process Into a More Automated Workflow

If your factory is currently facing:

• High manual handling requirements

• Inconsistent panel feeding

• Dust-related bonding problems

• Unstable adhesive application

• Frequent manual loading and unloading

a complete automatic PUR lamination solution may be worth evaluating.

The Xingmingda automatic Woodworking machinery Co.,Ltd solution connects automatic gantry loading, surface cleaning, pre-heating, PUR adhesive application, film lamination and automatic unloading into one production process.

Instead of asking only, “How much does a PUR lamination machine cost?”, manufacturers should ask a more important question:

“How much more efficient can my entire panel production process become after automation?”

If you are planning a new panel lamination line or upgrading an existing production process, contact Xingmingda automatic Woodworking machinery Co.,Ltd to discuss your requirements.

Please provide your:

• Board material

• Board size

• Board thickness

• Film specification

• PUR adhesive type

• Expected production capacity

Our team can then recommend a suitable equipment configuration.
